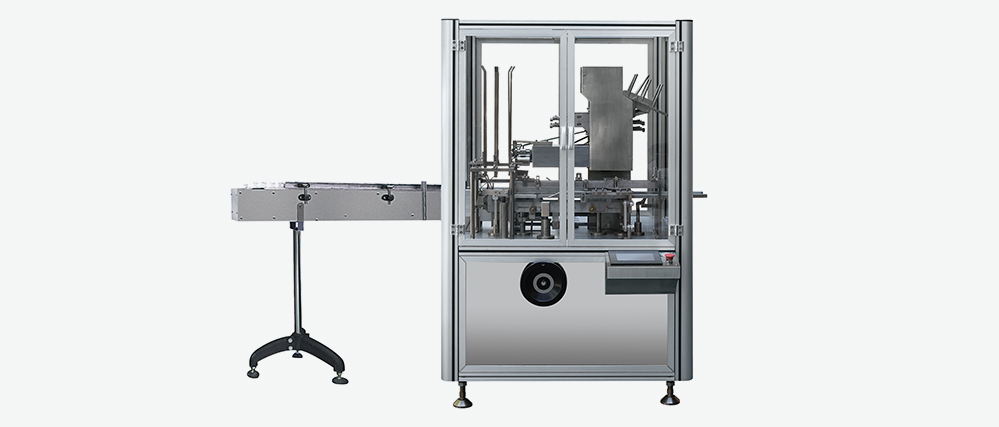

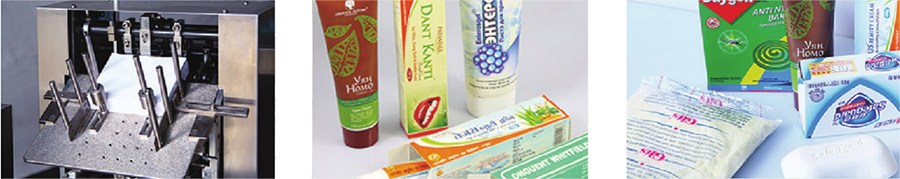

This machine is suitable for cardboard case packaging of table toothpaste, ointment and soft package (packed condoms). It consists of direction folding(1-4folds)and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc.The whole encasing process is finished automatically. It can be added hot-glue machine.
| Encasing Speed | 30-120 Cartons/min | |
| Carton | Quality requirement | 250-350g/㎡ Base on carton Size |
| Dimension range(L×W×H) | (65-155)mm × (30-85)mm × (14-50)mm | |
| Leaflet | Quality requirement | 60-70g/㎡ |
| Unfolded leaflet specification(L×W) | (80-250)mm × (90-170)mm | |
| Fold range(L×W) | 【1-4】Fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 200- 240L/min | |
| Power supply | 380V 50HZ | |
| Motor power | 0.75kw | |
| Machine dimension | 2300mm × 1140mm × 1800mm | |
| Machine weight | About 1200kg | |
